HE

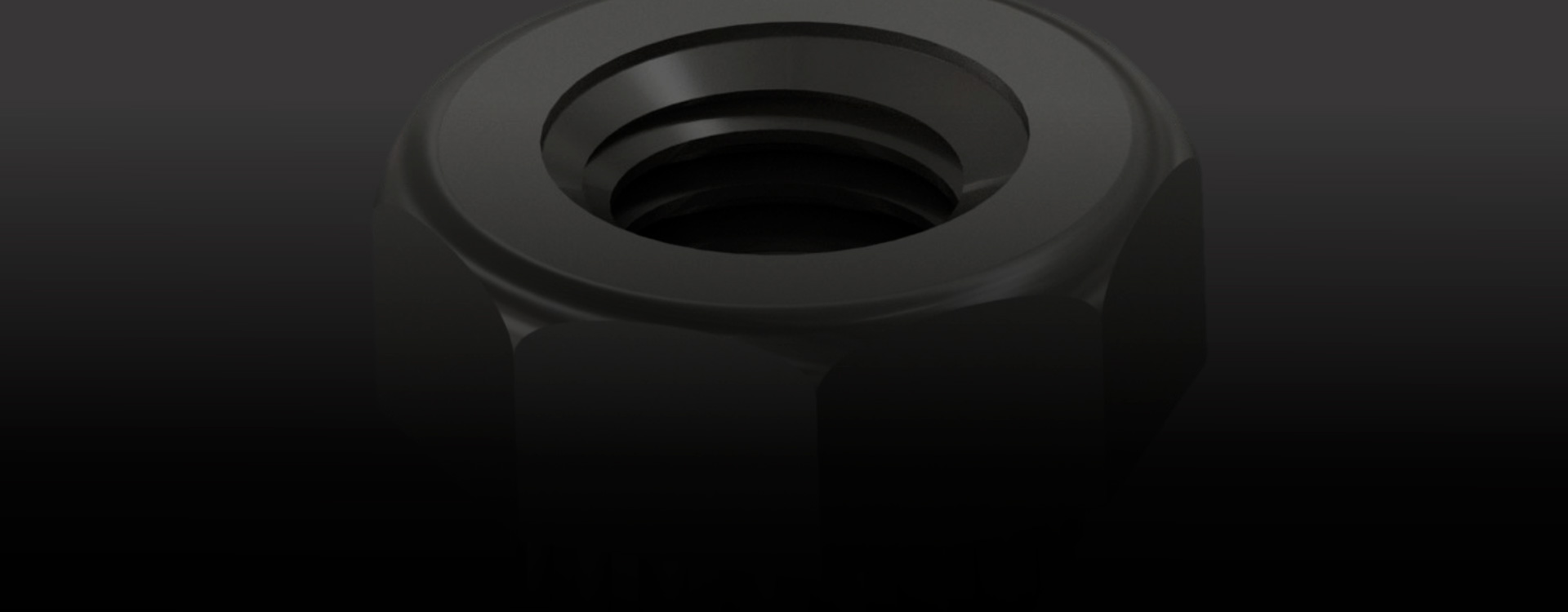

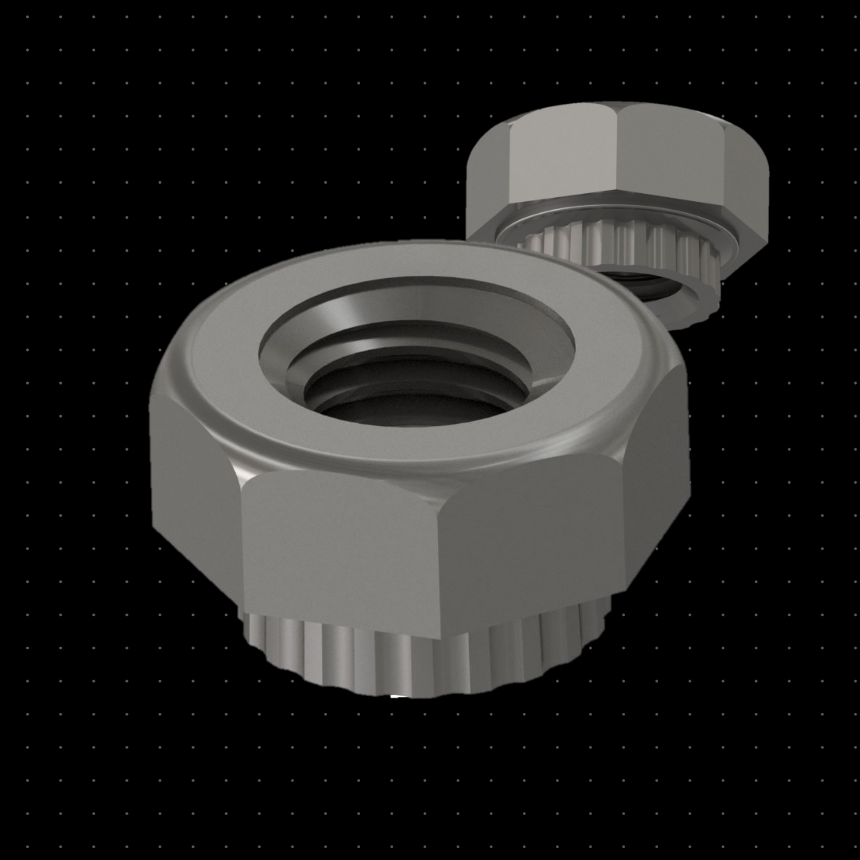

PIERCE NUT
The HE Pierce nut are made in steel, and suitable for 4 – 6mm plate plate thickness. Strength version class 10.
–
Mechanical properties
(Only in high strength )
High strength (Class 10):
• Used for <600MPa* UTS material
• Hardness range 35 – 40 HRC
• Proof load tested for ISO 898-2 Class 10
–
Standard surface treatments
• Plain (oiled)
• Zinc plating Cr3 – 8µm – clear passivation
• Zinc-Nickel plating – 8µm – black passivation
Available in a wide range of versions, from nut size M10 – up to M16.
For more information and detailed list of sizes. Download the production information below:
The KP Pierce nut has features that generate many benefits such as:
• No premade hole, self- piercing and clinching
• Increase bearing area for soft materials
• Flexible installation
The KP Pierce nut is suitable for most metallic materials such as:
• Steel
• Aluminium
• Magnesium
• Copper
• Composite
Under development! Stay tuned!
