FPN

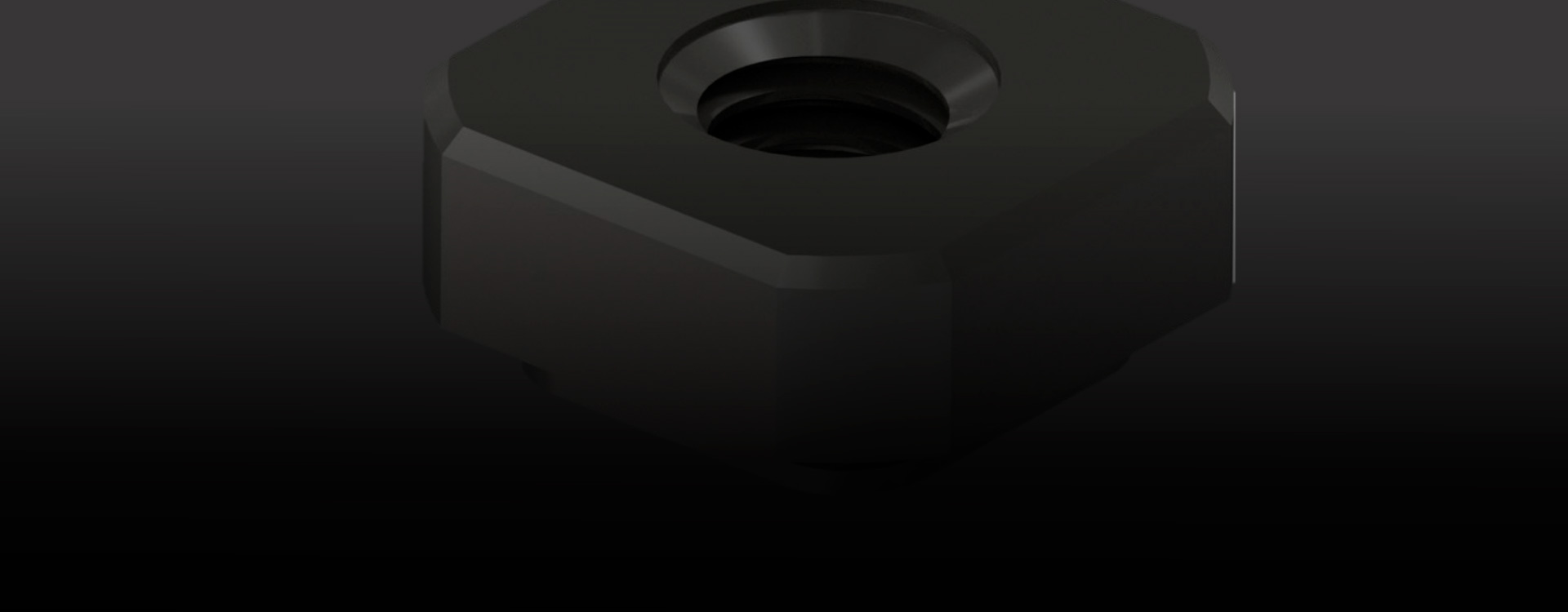

PIERCE NUT
The KP Pierce nut are made in hardened carbon steel, and suitable for 0,8 – 2mm thickness plates. Strenght version: Class 10.
–
Mechanical properties
Only in high strength!
High strength steel (Class 10):
• Used for <1200MPa* UTS material
• Hardness range 35 – 40 HRC
• Proof load tested for ISO 898-2 Class 10
–
Standard surface treatments
• Plain (oiled)
• Zinc plating Cr3 – 8µm – clear passivation
• Zinc-Nickel plating – 8µm – black passivation

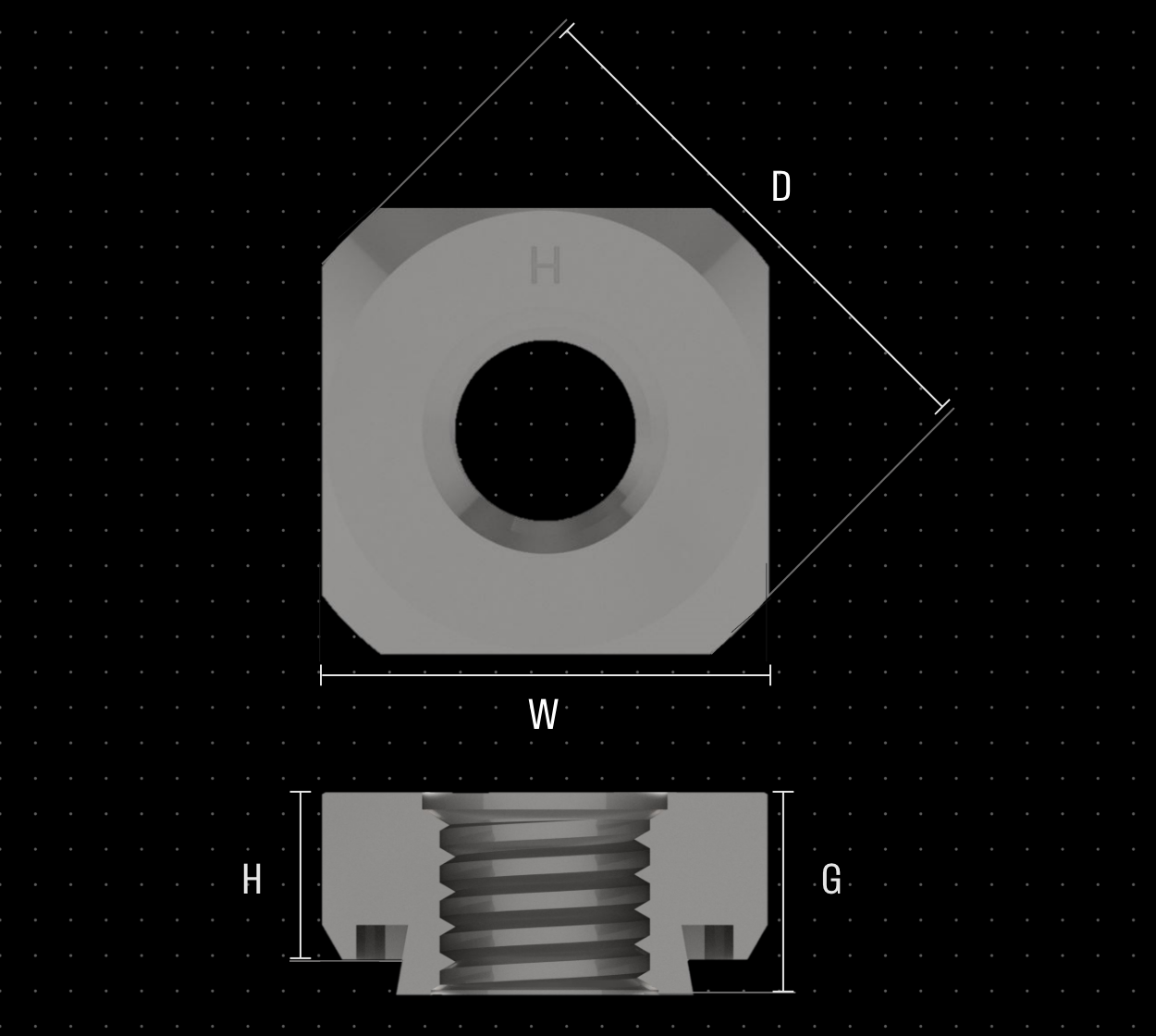

Available in a wide range of versions, from nut size M6 – up to M8.
More detailed information will come. The product is under development. Stay tuned!
The FPN Pierce nut has features that generate many benefits such as:
• No premade hole, self- piercing and clinching
• Flexible installation
The FPN Pierce nut is suitable for most metallic materials such as:
• Steel
• Aluminium
• Magnesium
• Copper
• Composite
The product is under development. Stay tuned!
