FLUSH HEAD
CLINCH SCREW

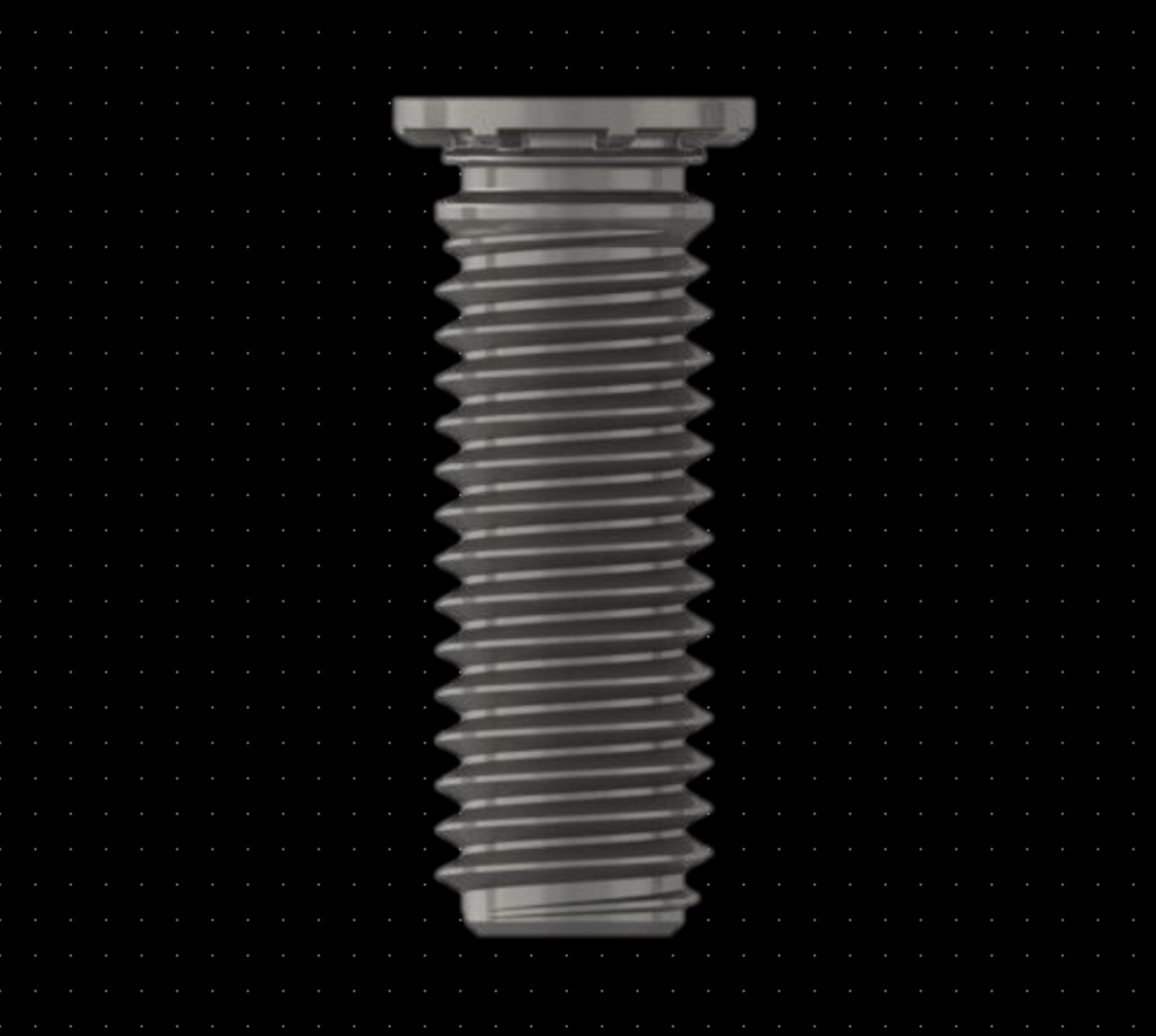

The Flush Head Clinch Screw is made in hardened steel, 304 stainless steel or 410 stainless steel. Depending on size, it is suitable for minimum 1 mm thickness plates and maximum 90HRB hardness.
–
Mechanical properties
Hardened steel
• Size range: M2 – M8
• Sheet hardness (max) – 80 HRB
• Sheet tensile strength (max) – 500MPa
304 stainless steel
• Size range: M2 – M18
• Sheet hardness (max) – 70 HRB
• Sheet tensile strength (max) – 400MPa
410 stainless steel
• Size range: M2 – M8
• Sheet hardness (max) – 90 HRB
• Sheet tensile strength (max) – 620MPa
–
Standard surface treatments
• Plain (oiled)
• Zinc plating Cr3 – 8µm – clear passivation
• Zinc-Nickel plating – 8µm – black passivation
• Zinc flake (geomet – silver or black)
–
For more information, please contact our engineers:
The Flush Head Clinch screw are available in a wide range of versions: from screw size: M2 up to size: M8
For more information and detailed list of sizes. Download the production information below:
The Flush head clinch screw has features that generate many benefits such as:
• No welding or other destructive operations
• High tensile and torque resistance
• Possible to use in high variety of materials and material thicknesses
• Flush head design
• One sided access (no special die needed)
For more information, please contact our engineers:
The KP Pierce nut is suitable for most materials such as:
• Steel
• Aluminium
• Magnesium
• Copper
• Composite
Under development. Cad drawing will be available in the near future.
Stay tuned!
